PACON 5000 is a compact, easy-to-operate and high accuracy water quality analyzer for automatic on-line inspection of water quality residual hardness and quality control of water softening processes. This system controls the selectable limits based on the titration colorimetric principle, providing accurate measurement readings by extinction, and a variety of functions to ensure the reliability of real-time operation.
Low maintenance and low reagent consumption, suitable for long time continuous operation, maintenance-free, especially suitable for the pharmaceutical purified water and industrial boiler water testing.Select the alkalinity reagent to measure total alkalinity.
Measurement Parameters
Total Hardness
Total alkalinity
Application
Process Water
Water Treatment
Drinking Water
Cooling Water
Fully-automatic Measurement
Full-automatically measure the total water hardness with different ranges according to the selected reagent.
The analysis process is more efficient than manual measurements and also more reliable than other indirect measurement methods, such as ion-selective electrode.
Intelligent & Accurate
GB measurement method - titration colorimetric method, the instrument does not require calibration. The integrated measurement technique and the two-stage analysis process can identify external
measurement effect，such as contamination of the cell, turbidity of the water sample and external light, and to eliminate these effects in the measurement.
Optional Measurement Interval
Optional measurement interval: 5-360min
PACON 5000 can also control the start-up measurement of the instrument via an external switching signal.
Compact Design
With size 300×300×200mm, it is suitale for direct wall mounting or install on the bracket.
Least Maintenance Workload
The measuring slot must be cleaned according to the set measuring interval or the measuring frequency.
It is recommended to replace the spare parts every year. The spare parts including: peristaltic pump head,reagent connection tube and seal, Order No. 50-5000-10. No additional tools are required for maintenance and can be easily executed.
Automatic Cleaning
Each analysis will automatically perform Rinsing and Cleaning, ensuring measurement accuracy, repeatability and reduced on-site maintenance.
Low Reagent Consumption

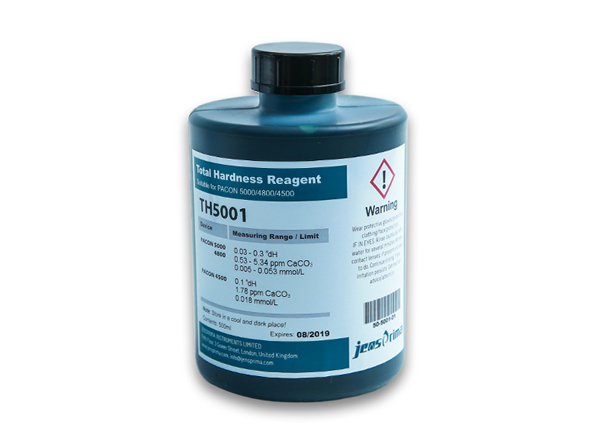

It is very easy to replace the reagent bottle, 500ml reagent can measure 5000-10000 times. Reagent is valid for 2 years.
LCD Display
Multi-language graphic backlit LCD display, showing measured values, reagent remaining, alarm values and relay status.
SD Card Storage
2G data memory card, can be directly connected to the computer, to access to historical data and system failure information in excel format
Output & Input
0 / 4-20mA & CAN bus
Insufficient reagent
Alarm signal
External start analysis signal
General Specification
Measurement method: Titration method with colour change
Environmental temperature:5 - 45℃
Measuring water temp.:5 - 40℃
Water inlet pressure: ca. 0.5-5bar, recommended 1-2bar
Inlet / Outlet connect: 6mm hose
Requirements of the water quality:
clear,colourless,no solid particles,
without gas bubbles; pH: 4 - 10.5 ;
Iron: < 3 ppm ; Copper: < 0.2 ppm ;
Al: < 0.1 ppm ; Mn: < 0.2 ppm;
Humidity: 20 - 90% RH
Supply Voltage: 85 - 265VAC，47-63Hz
Power consumption: 25VA（in operation）
Dimensions: 300 x 300 x 200 mm (W x L x H)
Weight: ca.5Kg
Protection class:IP65
Installation: Wall mounting in closed rooms
Analysis Specification
Measurement range :The measurement range is defined by the reagent used. (see reagent table)
Measurement duration: ca. 3 minutes depending on the hardness of the water
Measurement accuracy: ±5% of the upper value of the respective reagent
Repetition accuracy: ±2.5% of the upper value of the respective reagent
Analysis cycle: Measuring interval(5 - 360min) /External signal
Flush time:15 - 1800s
Display: Multi-coloured and multi-lingual graphic display
Unit: mmol/l、 dH、mg/l、ppm CaCO3
Analogue output: 0/4~20mA，max. 750Ω
Interface: CAN bus
Relay output: 4x potential free output NC/NO, 250VAC/DC, 4A
Input: IN1: Start analysis, IN2：Cancel error
Order Guide
Order No.
Description
33-5000-00
PACON 5000 Online Hardness Analyzer
33-5000-10
PACON 5000 Online Alkalinity Analyzer

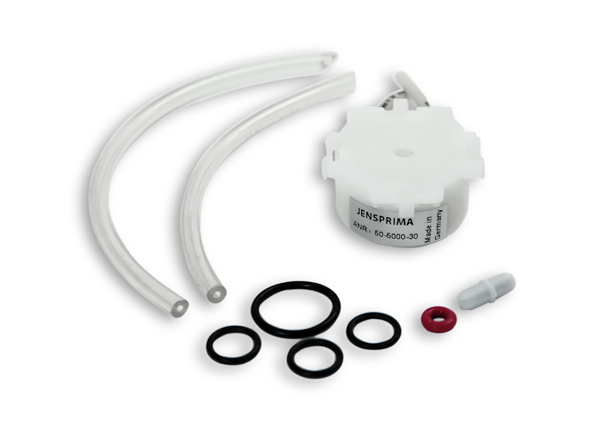

50-5000-10
Spare Parts Kit Including pump head
(including pump tube), all seals, stirrups, connection pipe of reagent bottle,
recommend to exchange every year.
50-5000-20
LED light source, recommended to be replaced every two years
