Features
Single-channel measurement, need to select the corresponding sensor
Wide power input, touch screen design
4.3-inch colour touch screen displays measured value, temperature and relay status
Chinese/English menu, easy to operate
Password protection to prevent unauthorised operation
New calibration step-by-step prompts can help reduce operating errors
2x programmable Hi/Lo relay outputs
Programmable auto-purge relay outputs
2x isolated 4-20mA outputs
RS485 Modbus RTU communication
Data storage function, support for USB stick data expor
Features
Controller
Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:-10~60.0°C
Storage temperature:-20~70.0°C
Protection level:IP66
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg

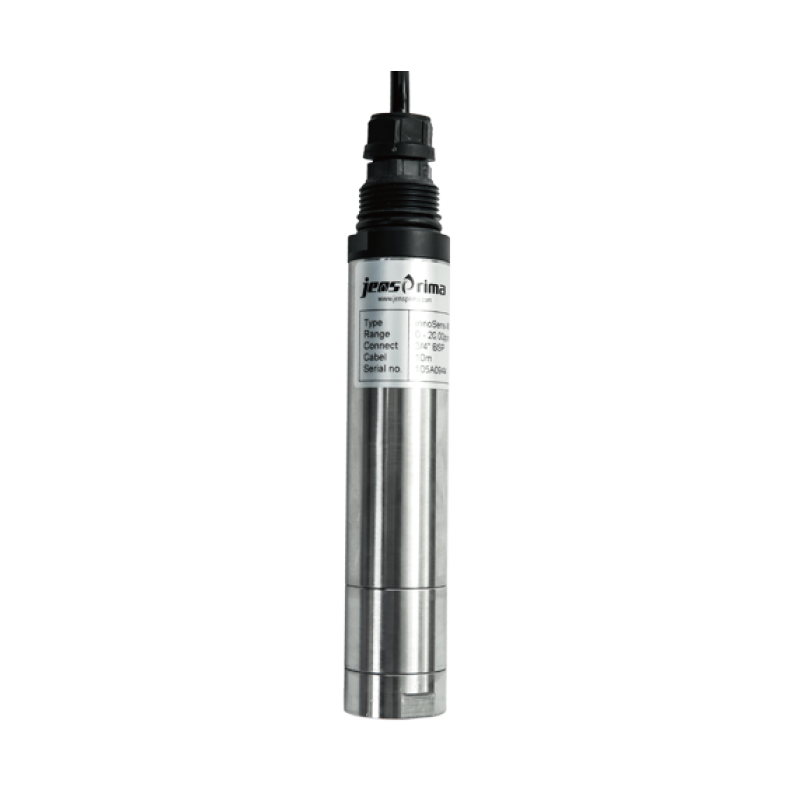

Measuring range：0.00-20.00ppm/0-200%
Resolution：0.01ppm
Accuracy:positive and negative0.1ppm or positive and negative1%
Response time：<60seconds
compensation：Built-in NTC temperature probe
Working temp：0-60℃
Flow rate：No requirement
Material：316L
Dimensions：Diameter: 33.5mm,Length: 197mm,Connection: 3/4" BSP
Cable：10m Standard
Max Pressure：5bar
Protection Class：IP68
