Flumsys 10TC-T1 Turbidity/Suspended Solids Analyzer

Features


Single-channel measurement, need to select the corresponding sensor

Wide power input, touch screen design

 4.3-inch colour touch screen displays measured value, temperature and relay status

Chinese/English menu, easy to operate

Password protection to prevent unauthorised operation

New calibration step-by-step prompts can help reduce operating errors

2x programmable Hi/Lo relay outputs

Programmable auto-purge relay outputs

2x isolated 4-20mA outputs

RS485 Modbus RTU communication
Data storage function, support for USB stick data expor


Features

Controller

Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
            Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:-10~60.0°C
Storage temperature:-20~70.0°C
Protection level:IP66
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg

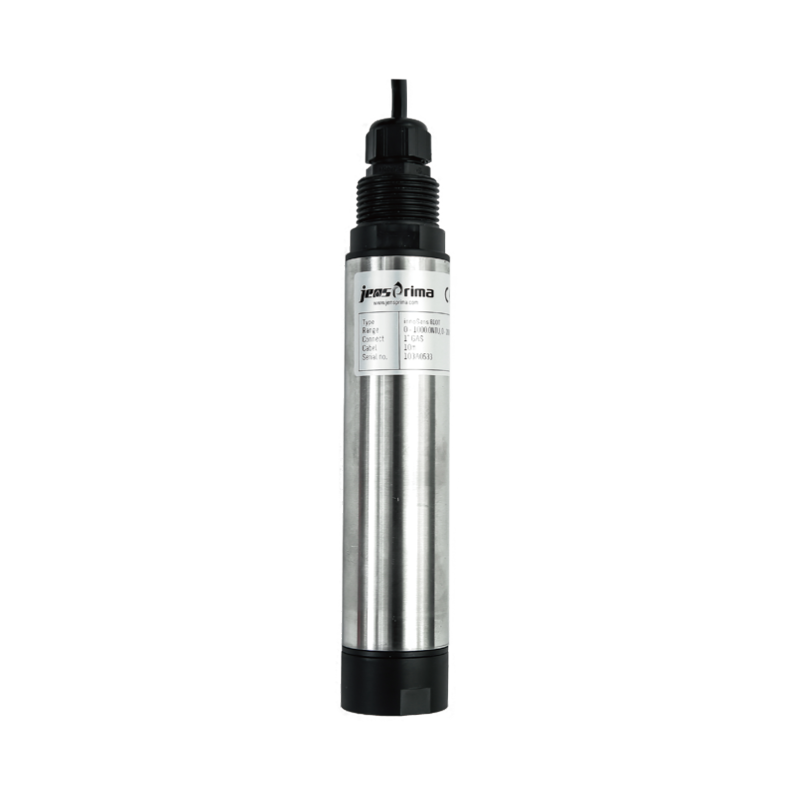

SENSOR


Measuring range：0-4000NTU
Resolution：0.1NTU，0.1mg/L，0.1ppm
Accuracy：±2%f.s.
Size：42mm diameter, 120mm length
Threaded connection：1“GAS
Cable：10m as standard
Pressure：Max.4bar
Working temperature：0-60℃
Protection class：IP68



specifications


Order    Guide



Order No.:            Description

35-0810-02       innoSens 810T Turbidity/SS Sensors
