Flumsys 10TC-F3 Online total chlorine controller

Application

Sewage, boiler water, drinking water, process water, untreated water



Feature

Single-channel measurement, need to select the corresponding sensor


Wide power input, touch screen design

 4.3-inch colour touch screen displays measured value, temperature and relay status

Chinese/English menu, easy to operate

Password protection to prevent unauthorised operation

New calibration step-by-step prompts can help reduce operating errors

2x programmable Hi/Lo relay outputs

Programmable auto-purge relay outputs

2x isolated 4-20mA outputs

RS485 Modbus RTU communication
Data storage function, support for USB stick data expor



Features

Technical parameters

Display:4.3-inch colour LCD touch screen display
Language:Chinese/English
Password:Setup mode: 0022, Calibration mode: 0011
Power supply:90-260VAC, 50/60Hz
Current output 1:
Isolated 4-20mA output, measurable value can be set,
maximum load 500Ω.
Current output 2:
Isolated 4-20mA output, measurable value can be set,
maximum load 500Ω.
Digital communication:RS485 Modbus RTU
Alarm output:
2 sets of programmable Hi/Lo contacts with
hysteresis setting 5A/250VAC/30VDC
Cleaning relay:
Cleaning interval:0.1-1000h,
Cleaning time:1-1000S
Working temperature:-10-60.0°C
Storage temperature:-20-70.0°C
Protection class:IP66
Installation:Wall mounting
Size:200×180×90mm

Weight:ca.1kg

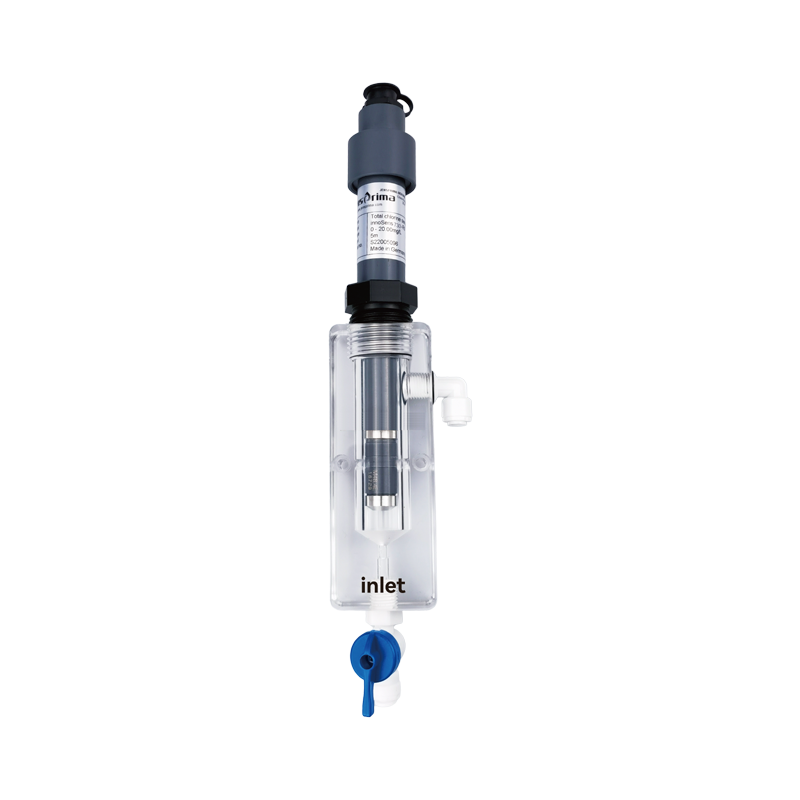

innoSens 740 Total Chlorine Electrodes


Measuring parameter：Total chlorine

Measuring range：0.005-2.000mg/L，0-20.00mg/L
Resolution：0.001/0.01mg/L
pH range：4.0-12.0
Working temperature：0-45℃
Pressure：Max.3bar
Flow rate：250~500ml/min
Response time：Initial polarisation time about 2 hours



specifications
Order No.         Description
35-0740-01     innoSens 740-R1，0.005-2.000mg/L
35-0740-02     innoSens 740-R2，0-20.00mg/L
50-0700-30     PA-730 flow cell，acrylic material
download

Flumsys 10TC-F3 Online Total Chlorine Controller
