Features
● Range: 0~1 mm/a , 0-5 mm/a
● Simultaneous measurement of pitting and average corrosion
● Combined Linear Polarisation Resistance (LPR) and AC Imped
ance Spectral Analysis (EIS) technology
● Internal signal isolation technology, strong interference
● Conductivity independent, anti-polarisation
● Stainless steel 316L .
● IP68 waterproof standard
● Low drift, small size, fast response
● Stable performance, long service life
Features
Technical parameters
Display:4.3-inch colour LCD touch screen display
Language:Chinese/English
Password:Setup mode: 0022, Calibration mode: 0011
Power supply:90-260VAC, 50/60Hz
Current output 1:
Isolated 4-20mA output, measurable value can be set,
maximum load 500Ω.
Current output 2:
Isolated 4-20mA output, measurable value can be set,
maximum load 500Ω.
Digital communication:RS485 Modbus RTU
Alarm output:
2 sets of programmable Hi/Lo contacts with
hysteresis setting 5A/250VAC/30VDC
Cleaning relay:
Cleaning interval:0.1-1000h,
Cleaning time:1-1000S
Working temperature:-10-60.0°C
Storage temperature:-20-70.0°C
Protection class:IP66
Installation:Wall mounting
Size:200×180×90mm
Weight:ca.1kg
Model: innoSens 370
Measurement principle: LPR (polarisation resistance method)
and EIS (spectral method)
Measuring range:
Resolution: 0.0001 mm/a
0～1 mm/a, 0～5 mm/a
Repeatability:
Response time:
±0.001 mm/a
50s (default)
Sensor drift: ≤0.3%FS/24h
Working temperature: 0-60℃, higher temperature need to be
customised

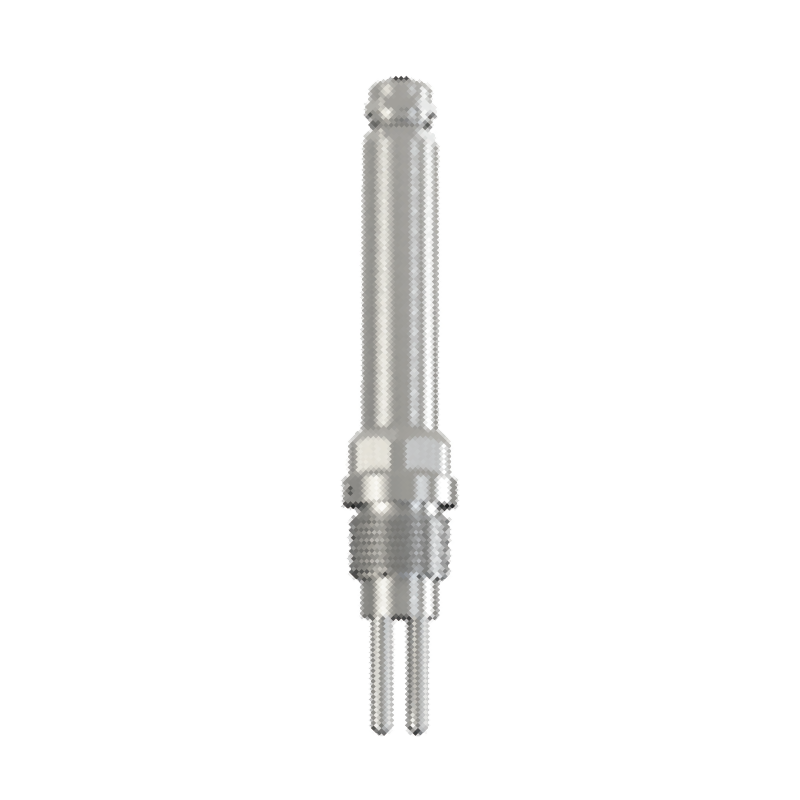

Probe material: stainless steel, carbon steel, etc. (according to
the pipe material selection)
Protection class:
Cable length: 5m as standard
IP68
Applications: industrial circulating water, sewage treatment,
environmental monitoring, etc.
