innoCon 6501P pH/Redox Controller

innoCon 6501P controller is specially designed for water treatment and industrial process control. Used with innoSens pH/Redox sensor, it can measure the pH, Redox and temperature of the sample water.

It features automatic temperature compensation and has various mounting methods. 4-20mA and multiple control function outputs are a standard feature.

Application:

Process Water, Disinfection, Drinking Water, Food&Beverage, Cooling Water, Wastewater Treatment, Pool

Technical Data

Measurement parameter

pH: -2.00 - 16.00 pH

ORP: -2000 - 2000 mV

Temperature:-10 - 120℃

Input

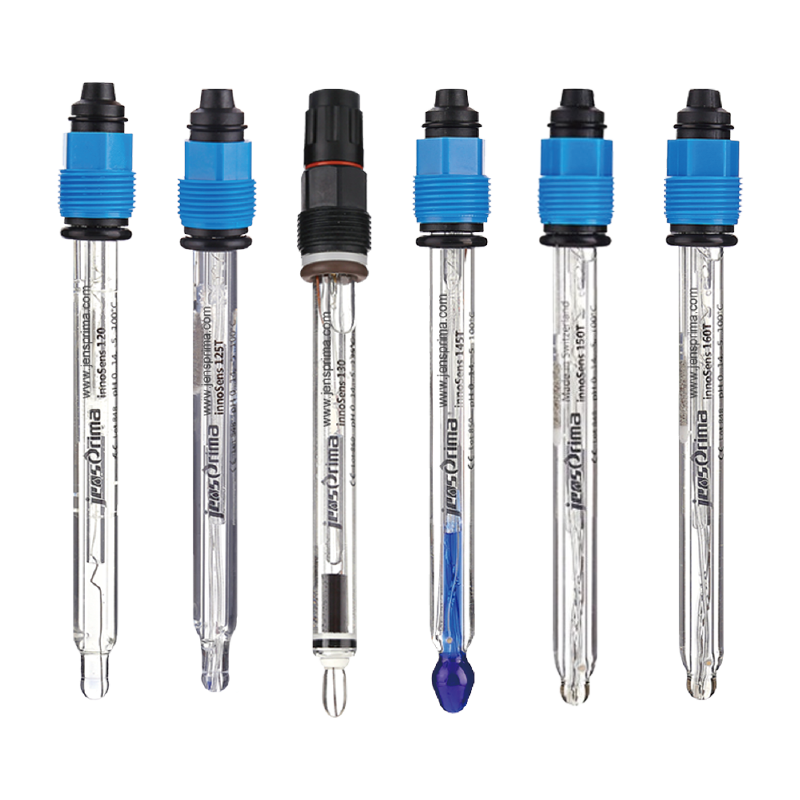

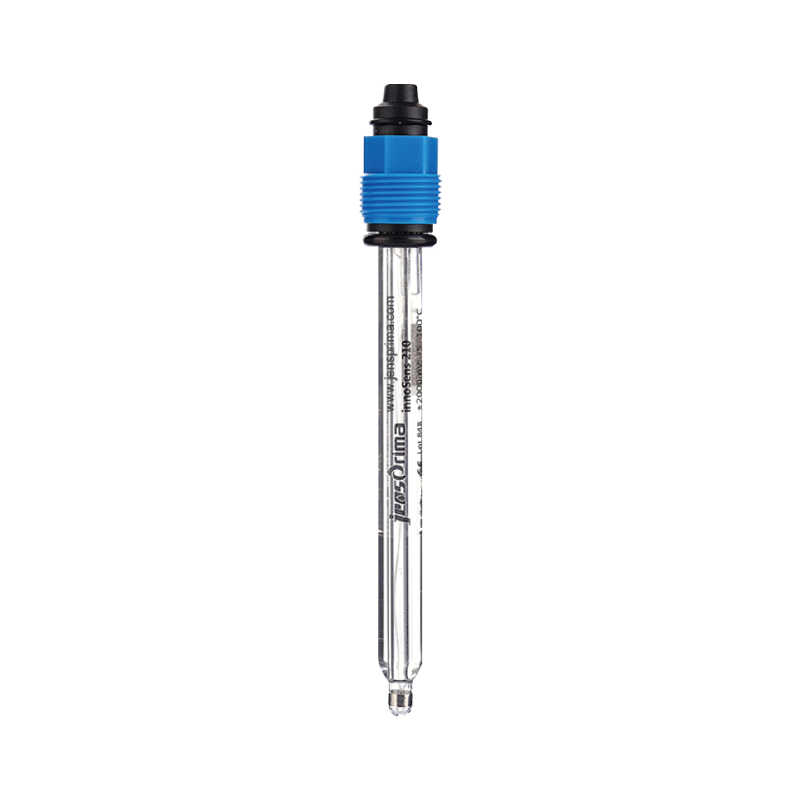

Measuring sensor: innoSens pH/ORP sensor

Temperature probe: Pt-1000

Output

Analog Output 1

4-20 mA isolated current output for pH/ORP, it can be made to represent any segment of the measuring scale.

Load: Max 600Ω

Relay 1 Output

Operation: ON/OFF

Selectable action : High

Set Point: 10.00 pH (adjustable)

Hysteresis: 0.01 pH (adjustable)

Relay contacts: 5A/250VAC;5A/30VDC

Relay 2 Output

Operation: ON/OFF

Selectable action : Low

Set Point: 4.00 pH (adjustable)

Hysteresis: 0.01 pH (adjustable)

Relay contacts: 5A/250VAC;5A/30VDC

General Information

Power supply: 90 - 260V AC, 50/60Hz; 24VDC(Optional)

Temperature: Operating temperature: 0 - 60 ℃，Storage temperature: -20 - 70 ℃

Humidity: Max. 90% rH at 40℃ (non-condensing)

LCD Screen: Big-size screen of crystal display, white back ligh

Passcode: Set mode: 0022

Protection grade:IP65

Dimensions: 96 * 96 * 140mm

Installation: Pipe/Panel Mounting

Panel Cut Size: 90 * 90mm

Weight: 0.5Kg
