Measurement parameter |
Ph:-2.00 - 16.00 pH ORP: -2000 - 2000 mV Temperature: 0 - 130 ºC |
|
Input |

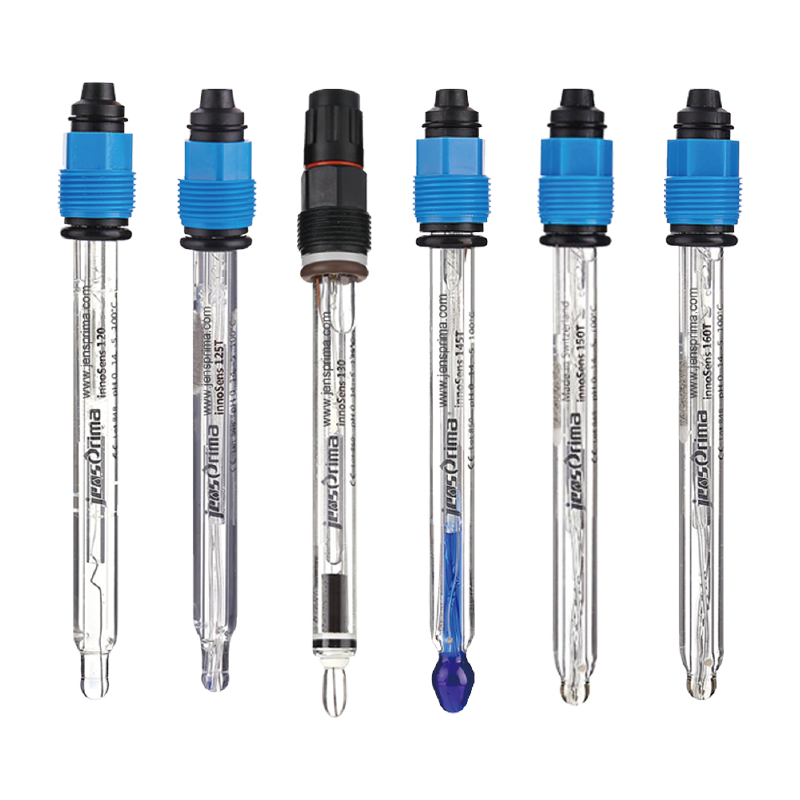

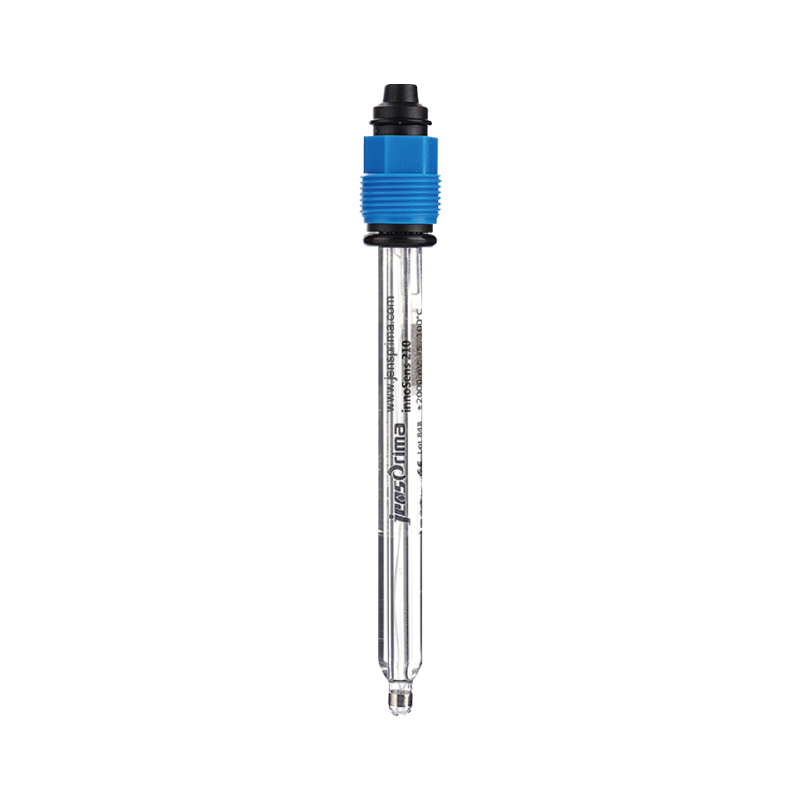

Measuring sensor: innoSens pH/ORP sensor Temperature probe: Pt-1000 / NTC-10K (optional) |
| Output |
Analog Output 1: 4-20 mA isolated current output for pH/ORP, it can be made to represent any segment of the measuring scale. Load: Max 600Ω Analog Output 2: 4-20 mA isolated current output for TEMP., it can be made to represent any segment of the measuring scale. Load: Max 600Ω |
| Relay 1&2 (Alarm) |
Operation: ON/OFF Selectable action : High / Low Set Point: High/10.00 pH; Low/4.00 pH (adjustable) Hysteresis: 0.01 pH (adjustable) Relay contacts: 5A/250VAC;5A/30VDC |
| Relay 3 (Washing Relay) |
Wash interval: 0.1~1000hour Wash time: 1~1000s Relay contacts: 5A/250VAC;5A/30VDC |
| Interface |
RS 485 Modbus RTU Baud rate: 9600 bps Data format: 8 bit |
| Power supply | 90 - 260V AC, 50/60Hz; 24VDC(Optional) |
| Operating temperature | 0 - 60 ºC |
| Storage temperature | -20 - 70 ºC |
| Humidity | Max. 90% rH at 40ºC (non-condensing) |
| LCD Screen | Big-size screen of crystal display, white back light |
| Language | Chinese / English |
| Passcode | Set mode: 0022, Calibration mode: 0011 |
| Protection grade | IP65 |
| Dimensions | 144 * 144 * 110mm |
| Installation | Wall/Pipe/Panel Mounting |
| Panel Cut Size | 138 * 138mm |
| Weight |
0.85Kg |
| Order No. | Type | Descriptions |
| 33-6801-10 | innoCon 6800P | pH/Redox controller, 90 - 260V AC |
| 33-6801-14 | innoCon 6800P |
pH/Redox controller, 24V DC |
