Flumsys 10TC-DS Dual channel online dissolved oxygen/MLSS analyser

Parameters:

Dissolved oxygen: 0-20.00mg/L

Sludge concentration: 0-30.0g/L

Applications:

 Wastewater treatment plants

Features

Controller

Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:0~70.0°C
Storage temperature:-20~70.0°C
Protection level:IP65
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg





 Sensor

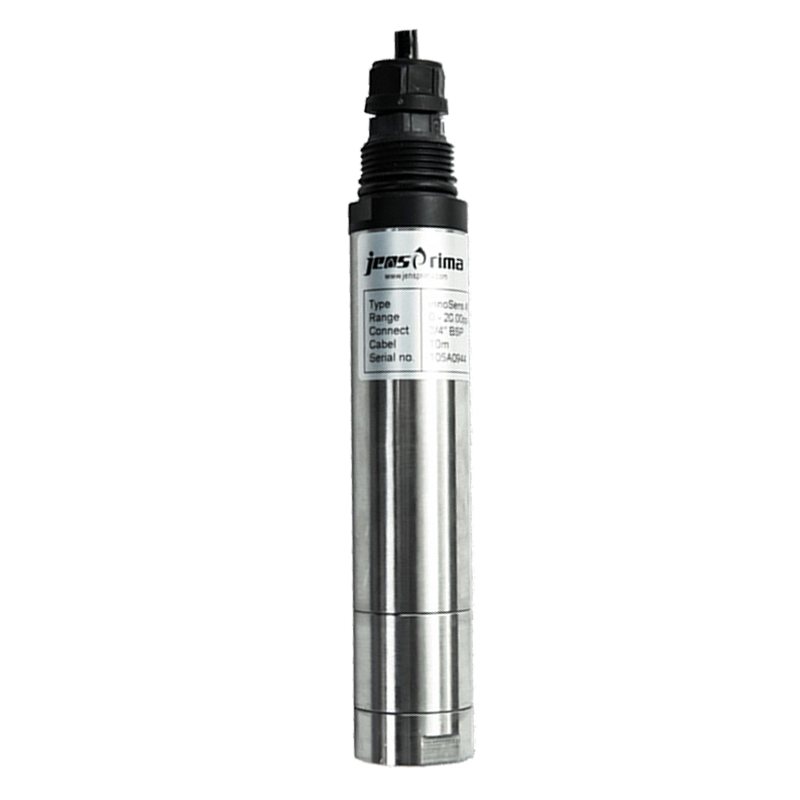

InnoSens 450 Fluorescence Dissolved Oxygen Sensor

InnoSens 450 Fluorescence Dissolved Oxygen Sensor is based on the principle of fluorescence quenching, requires no membrane and electrolyte, is virtually maintenance-free, has excellent performance, is easy to use, does not consume oxygen, and is widely used in municipal wastewater treatment plants for DO monitoring in aeration basins.



Model: innoSens 450
Measuring principle: fluorescence quenching principle
Measurement range: 0.00 - 20.00ppm / 0 - 200%
Resolution: 0.01ppm
Accuracy: 0.lppm or t1%
Temperature compensation: Built-in NTC
Response time: ＜60S
Flow rate: not required
Electrolyte/membrane: not required, fluorescent cap replaceable (cycle 1~2 years)
Material: 316L

Size：
Dimensions: Diameter: 33.5mm
Length: 197mm
Connection: 3/4" BSP

Cable: 10m as standard

Maximum pressure: 5bar
Operating temperature: 0 - 60°C
Protection Class: IP68

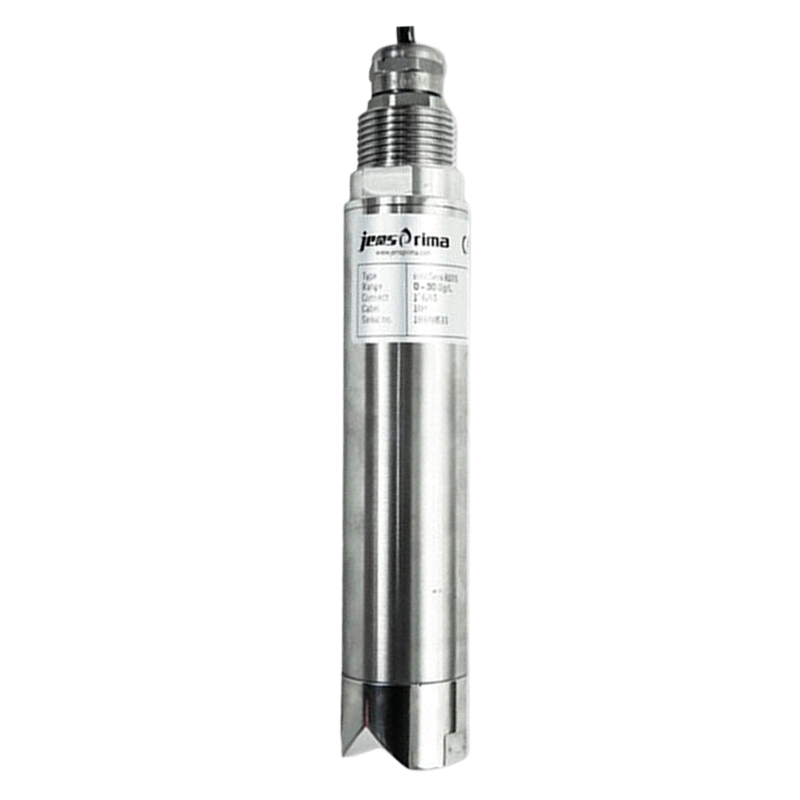

InnoSens 810S Sludge Concentration Sensor
The InnoSens 810S sludge concentration sensor with 90° light scattering technology in stainless steel is robust and reliable, ensuring reliable and stable online measurements.
Measuring principle: 90° light scattering technology
Measuring range:0.0-30.0g/L
Resolution:0.1g/L
Accuracy:±3%f.s.
Material:316L housing, special optical glass
Diameter: 42mm
Length:210mm
Connection: 1 "GA
Cable: 10m as standard
Maximum pressure:4bar
Operating temperature:0-60°C
Protection Class:IP68
