Flumsys 10TC-FP Dual channel on-line residual chlorine/pH analyser

Parameters:

Residual chlorine: 0-2.000/0-20.00mg/L

pH: 0-14pH

Applications:

drinking water, secondary networks, process water, swimming pools

Features

Controller

Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:0~70.0°C
Storage temperature:-20~70.0°C
Protection level:IP65
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg



Sensor

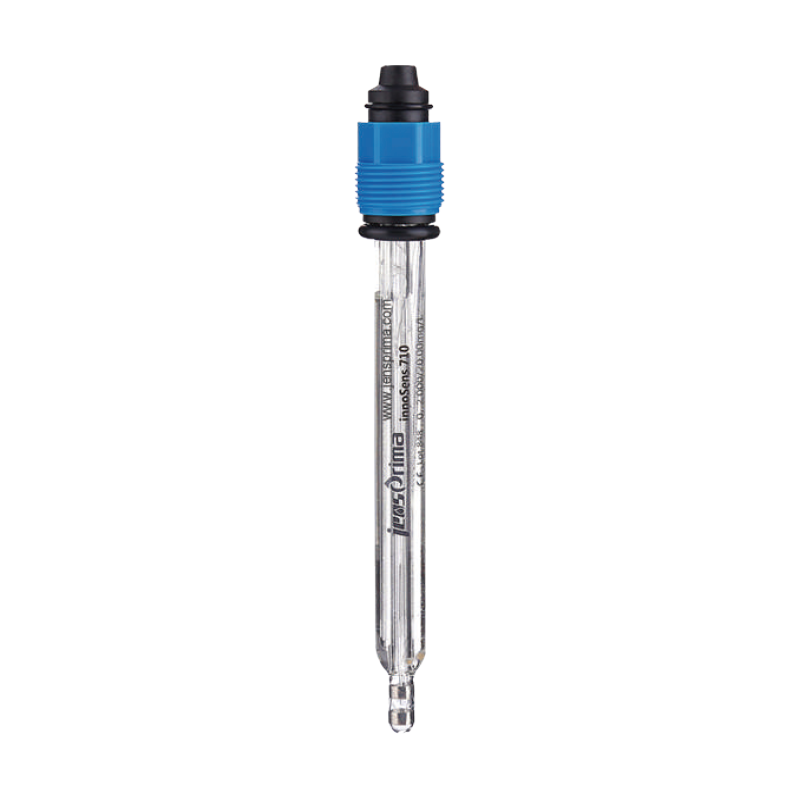

InnoSens 710 Residual Chlorine Electrode
The innoSens 710 electrode is based on the principle of dual platinum constant voltage measurement, where the measuring and reference electrodes maintain a stable potential at which different current strengths are generated for different measured constituents. During the measurement process, Cl2 or HClO is consumed, so the current intensity generated is related to the concentration of residual chlorine in the water. It does not require any colourimetric reagents, no need to replace diaphragms and electrolytes, easy to install and low maintenance.
Product Model: innoSens 710
Measuring range: 0-2.000/0-20.00ppm(mg/L)
Resolution: 0.001/0.01ppm
Accuracy: ±2%f:s.
Temperature compensation: automatic compensation
pH compensation: automatic pH compensation
Working temperature: 0-60℃
Suggested flow rate: 10-30l/h
Electrode material: glass
Thread connection: PG13.5
Cable length: standard 3m, optional 10m
Size: φ12mm×120mm

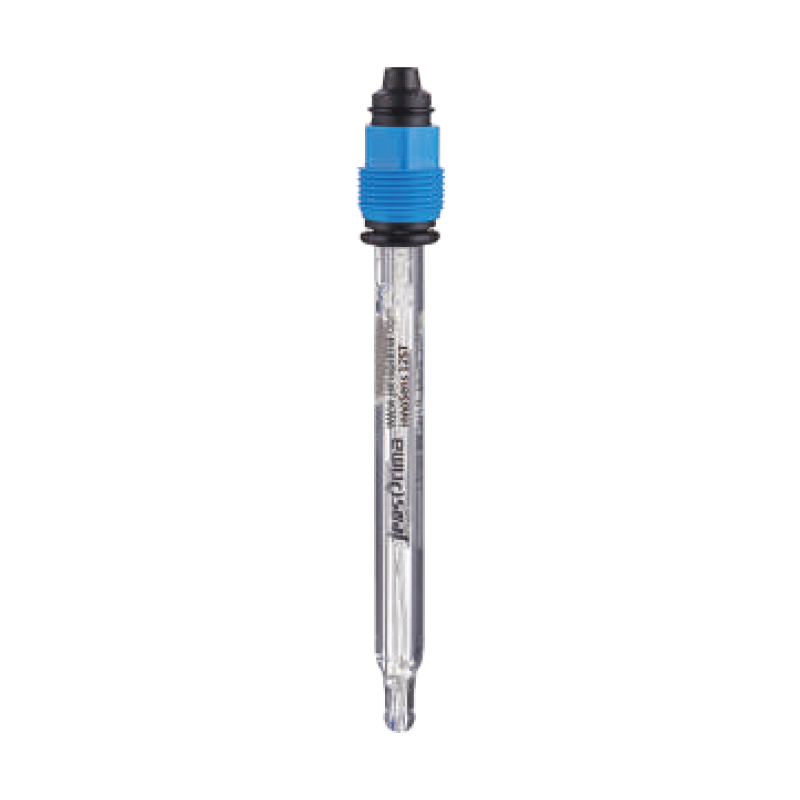

InnoSens 125T pH/T Sensor
innoSens 125T electrodes are composite electrodes (measurement + reference), gel-filled and PTFE diaphragm, and their low-maintenance and high-precision features make them suitable for a wide range of water quality applications. The low maintenance and high accuracy features allow them to be used in a wide range of water quality applications.
Product Model: innoSens 125T
Measuring range: 0-14pH
Operating Temperature: -5-100°C
Temperature type: PT1000
Maximum working pressure: 6bar
Electrode Material: Glass
Electrolyte: Polymer
Diaphragm: PTFE diaphragm
Diameter/Length: 12mm/120mm
Threaded connection: PG13.5
Cable length: 5m as standard
Application: Recommended for water with conductivity >150μS/cm.
