Flumsys 10TC-CP Dual channel on-line conductivity/pH analyser

Parameters:

Conductivity: 0-20.00/0-200.0/0-2000uS/cm

pH: 0-14pH

Applications:

 drinking water, boiler water, process water, swimming pools

Features

Controller

Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:0~70.0°C
Storage temperature:-20~70.0°C
Protection level:IP65
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg

Sensor

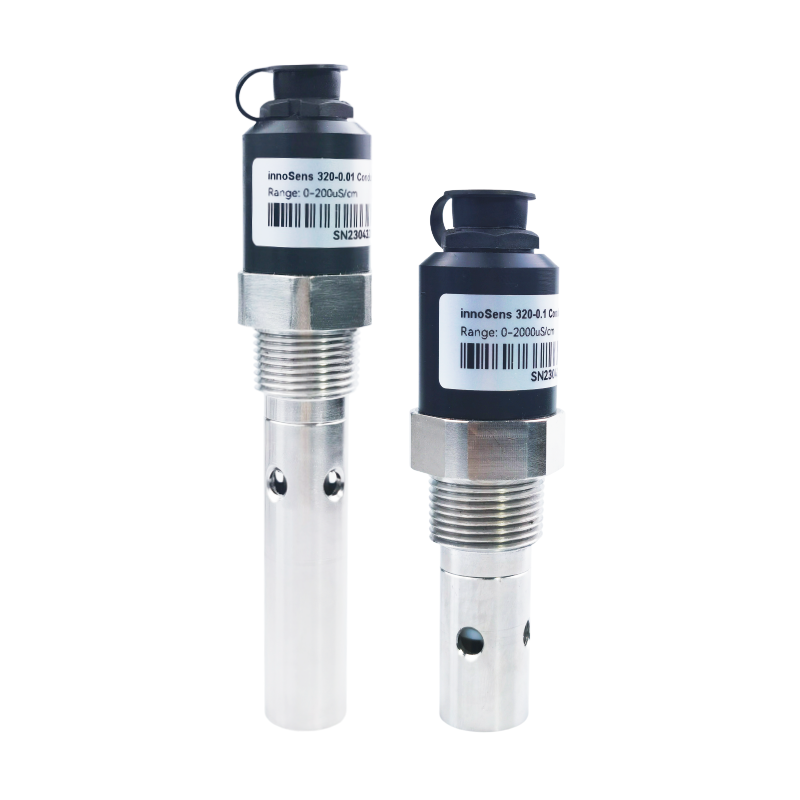

InnoSens 320 Conductivity Electrode
The innoSens 320 conductivity electrode is characterised by durability, reliability and high performance for a wide range of conductivity monitoring applications.
Measuring range: 0-20.00/200.0/2000μS/cm
Temperature probe: PT1000
Operating temperature: 0-100°C
Maximum pressure: 6bar
Installation: Pipe mounting / Flow-through mounting
Threaded connection: 3/4 "NPT
Cable length: 5m as standard

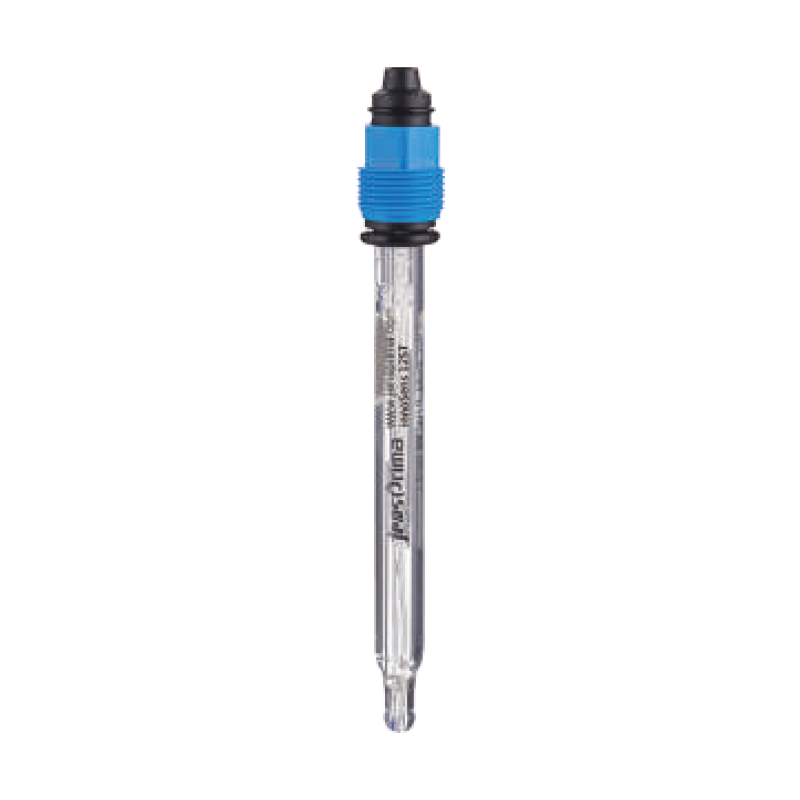

InnoSens 125T pH/T Sensor
The innoSens 125T electrodes are composite electrodes (measurement + reference), gel-filled and PTFE diaphragms. The low maintenance and high accuracy features allow them to be used in a wide range of water quality applications. The low maintenance and high accuracy features allow them to be used in a wide range of water quality applications.
Product Model: innoSens 125T
Measuring range: 0-14pH
Operating Temperature: -5-100°C
Temperature type: PT1000
Maximum working pressure: 6bar
Electrode Material: Glass
Electrolyte: Polymer
Diaphragm: PTFE diaphragm
Diameter/Length: 12mm/120mm
Threaded connection: PG13.5
Cable length: 5m as standard
Application: Recommended for water with conductivity >150μS/cm.
