Flumsys 10TC-FT Dual channel on-line residual chlorine/turbidity analyser

Parameters

Residual chlorine: 0-2.000/0-20.00mg/L

Turbidity: 0.0001-100NTU



Applications:

drinking water, secondary networks, process water, swimming pools

Features

Controller

Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:0~70.0°C
Storage temperature:-20~70.0°C
Protection level:IP65
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg

 Sensor

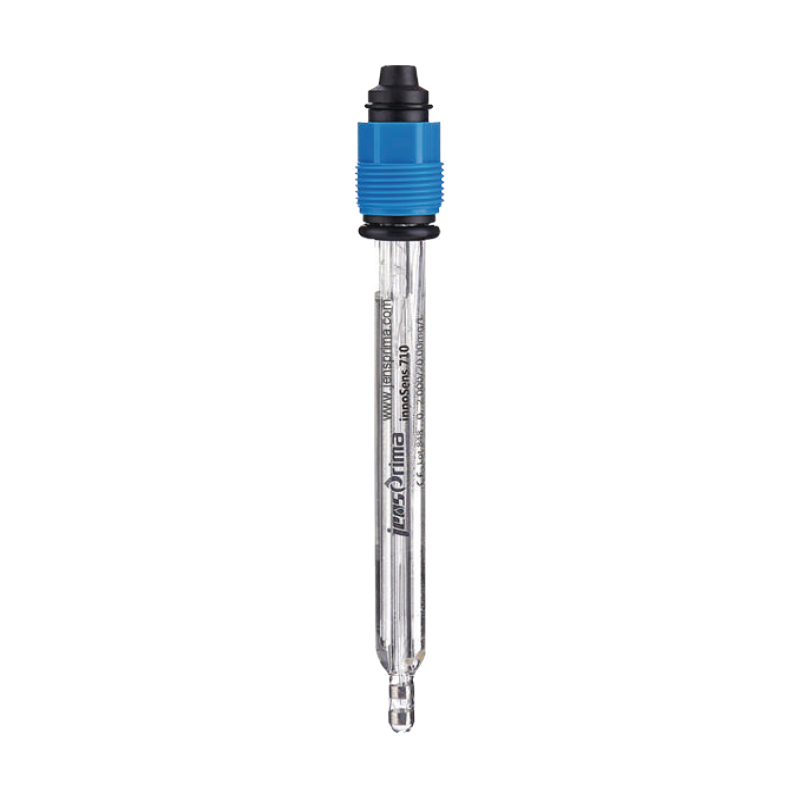

InnoSens 710 Residual Chlorine Electrode
The innoSens 710 electrode is based on the principle of dual platinum constant voltage measurement, where the measuring and reference electrodes maintain a stable potential at which different current strengths are generated for different measured constituents. During the measurement process, Cl2 or HClO is consumed, so the current intensity generated is related to the concentration of residual chlorine in the water. It does not require any colourimetric reagents, no need to replace diaphragms and electrolytes, easy to install and low maintenance.
Product Model: innoSens 710
Measuring range: 0-2.000/0-20.00ppm(mg/L)
Resolution: 0.001/0.01ppm
Accuracy: ±2%f:s.
Temperature compensation: automatic compensation
pH compensation: automatic pH compensation
Working temperature: 0-60℃
Suggested flow rate: 10-30l/h
Electrode material: glass
Thread connection: PG13.5
Cable length: standard 3m, optional 10m
Size: φ12mm×120mm



InnoSens 850T Low Range Turbidity Sensor
InnoSens 850T low range turbidity sensor can measure ultra-low range turbidity, with internal defoaming structure and anti-condensation function, to ensure stable and high-precision measurement. With LED light source, no need to replace within ten years, widely used in tap water outlets, engineering drainage outlets and other types of clean water turbidity online monitoring.
Product Model: innoCon 6800T-5
Measuring principle: 90 ° scattered light
Measuring range: 0.0001-100NTU
Resolution: 0.0001/0.001NTU
Accuracy: ±2% of reading or ±0.02NTU, whichever is greater
Light source: LED
Response time: <30s
Inlet flow rate: 100-200ml/min
Working temperature: 0-50℃
Protection grade: IP65
Installation: wall mounted
Size: 160x260x150mm
Weight: ca.2Kg
