InnoCon 6800S online MLSS analyser

Parameters

MLSS: 0 - 30.0 g/L

Applications: waste water treatment, sludge dewatering, paper mills

Features

90° NIR light scattering technology for reliable concentration measurement
316L stainless steel electrodes for robustness and reliability
Wide power input, touch screen design
Large backlit LCD display shows measured values, temperature and relay status
Easy operation with Chinese/English menu
Password protection to prevent unauthorised operation
New calibration procedure prompts to help reduce operational errors
2 x programmable Hi/Lo relay outputs
Programmable auto-purge relay outputs
2 x isolated 4-20mA outputs
RS485 Modbus RTU communication
Data storage capability with USB stick export support

Features

Controller

Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:0~70.0°C
Storage temperature:-20~70.0°C
Protection level:IP65
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg

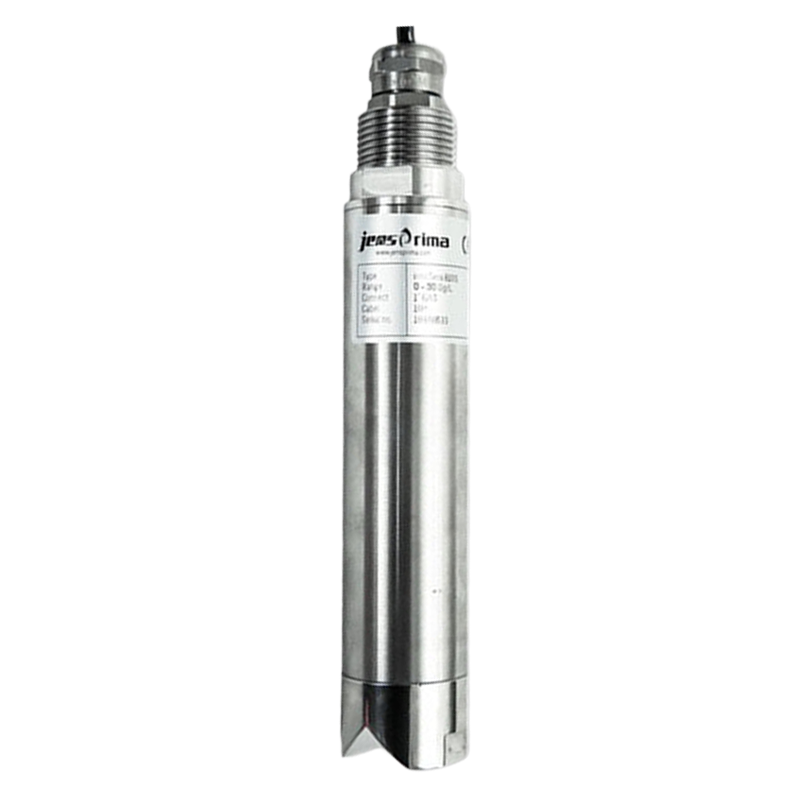

InnoSens 810S MLSS sensor

The InnoSens 810S MLSS sensor with 90° light scattering technology in stainless steel is robust and reliable, ensuring reliable and stable online measurements.







Model: innoSens 810S
Measuring principle: 90" light scattering technology
Measurement range: 0.00 - 30.0g/L

Resolution: 0.1g/L
Accuracy: +3%fs

Material:316L housing, special optical glass

Size:

Diameter: 42mm

Length: 210mm

Connection: 1" GAS



Cable: 10m as standard
Maximum pressure: 4bar
Operating temperature: 0 - 60°C
Protection class: IP68
